As manufacturing industries push the boundaries of miniaturization, performance, and cost efficiency, traditional surface finishing approaches face mounting limitations. Components in aerospace, telecommunications, medical devices, and advanced electronics require surfaces that deliver exceptional performance characteristics while meeting increasingly stringent dimensional tolerances. Self-assembled monolayers (SAMs) represent a breakthrough approach to surface engineering that addresses these challenges through molecular-level precision.
What Are Self-Assembled Monolayers (SAMs)?

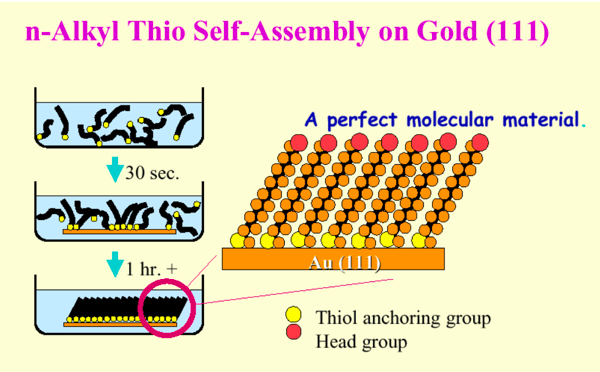

Self-assembled monolayers are organized molecular structures that spontaneously form on surfaces through a reversible chemical process. Unlike traditional plating methods that build thickness through layer deposition, SAMs create protective surfaces at the nanoscale level through molecular self-organization.
The fundamental process works through molecular building blocks with bi-functional or multi-functional termination groups. One end of each molecule chemically bonds to the substrate surface while the other end provides specific functional properties. As molecules attach to the surface, they continuously arrange and rearrange themselves to form increasingly efficient and complete coverage.
This self-assembly occurs without external direction or management. The molecules naturally seek optimal positioning, filling surface irregularities and creating uniform coverage, regardless of the substrate's topology. The result is a complete protective layer that forms spontaneously at the local level, building itself molecule by molecule until achieving full surface coverage.
The technology bridges multiple scientific disciplines, drawing from chemistry, molecular biology, polymer science, and materials engineering. While SAMs have found applications in cutting-edge micro and nano-technologies, their adaptation to electroplating represents a significant advancement in manufacturing surface finishing.
What is NanoSHIELD-AUTM?
NanoSHIELD-AUTM is Electro-Spec's proprietary implementation of SAM technology, specifically engineered for gold-plated surfaces. NanoSHIELD-AU employs advanced molecular engineering to create protective layers that enhance performance while reducing precious metal requirements.
The NanoSHIELD-AU Process
The application process involves immersing gold-plated components in a precisely formulated blend of proprietary chemical polymers. The bath is heated to a specific temperature where molecular attachment begins. Within the solution, the sulfur-affinity "head" groups of the polymer molecules bond to the gold deposit while their "tail" groups interconnect with adjacent molecules.
This molecular linking process continues until a continuous, impervious protective layer forms across the entire surface. The defining characteristic of NanoSHIELD-AU is this complete, gap-free molecular coverage. The entire immersion and formation process requires approximately three minutes, with minimal post-processing needed to complete the treatment.
Key Differentiators
What distinguishes NanoSHIELD-AU from predecessor SAM technologies is its thicker and tighter film build, achieved through optimized molecular formulations. The process creates molecular structures that deliver enhanced protection while maintaining compatibility with industry-standard gold plating specifications.
NanoSHIELD-AU does not alter the metallurgical properties of the underlying gold deposit. Hardness and purity remain unchanged, ensuring full conformance with current industrial, commercial, and federal gold plating specifications. Components treated with NanoSHIELD-AU meet the same specification requirements as traditionally plated parts while delivering superior performance characteristics.
NanoSHIELD-AU Performance Benefits
The application of NanoSHIELD-AU delivers measurable improvements across multiple performance criteria critical to advanced manufacturing.
NanoSHIELD-AU Benefit 1: Enhanced Contact Resistance Performance

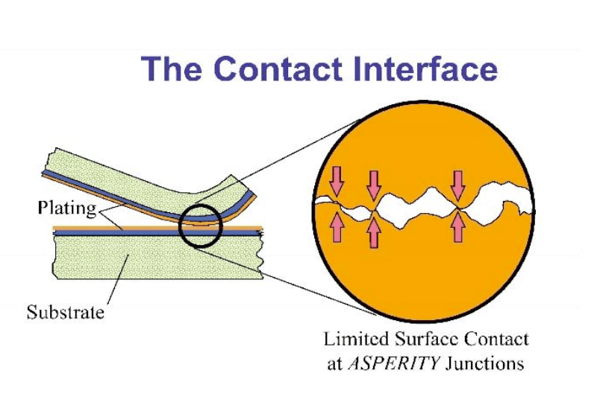

Plated surfaces inherently exhibit increased resistivity due to surface irregularities that create limited contact at asperity junctions. This constricts current flow through high points rather than across the full contact area, adding unwanted contact resistance to the system.
NanoSHIELD-AU addresses this by filling surface voids and smoothing irregularities. The molecular layer minimizes asperity junction effects, shifting the resistance equation closer to ideal conditions. This reduces localized heating and improves electrical system efficiency in connector applications, RF components, and high-reliability electrical contacts.
NanoSHIELD-AU Benefit 2: Superior Corrosion Resistance
Corrosion resistance begins with reducing surface porosity, the void fraction within the material structure. Plating porosity results from surface impurities, machining conditions, grain structure, and deposit thickness. Traditionally, achieving low porosity requires increasing precious metal thickness, which drives up material costs.
NanoSHIELD-AU forms an impermeable molecular barrier independent of surface roughness or topology. The technology creates localized zones of zero porosity, preventing corrosive agents from penetrating to the substrate. This allows a dramatic reduction in plating thickness while achieving superior corrosion resistance compared to thicker traditional deposits.
NanoSHIELD-AU Benefit 3: Exceptional Wear Resistance and Lubricity
NanoSHIELD-AU delivers dramatic improvements in wear resistance and surface lubricity compared to standard gold finishes. This anti-wear performance directly benefits applications involving repeated mechanical contact or sliding motion.
NanoSHIELD-AU Benefit 4: Dimensional Precision Advantages
Because NanoSHIELD-AU operates at the molecular level rather than building thickness through deposition, dimensional changes remain negligible. The increase in part dimensions can only be measured on the nanometer scale, making the process ideal for components with tight tolerance requirements like miniaturized electronics, precision connectors, and medical device components where even minor dimensional changes can affect fit, function, or performance.
NanoSHIELD-AU Benefit 5: Cost Reduction Through Thickness Optimization
One of NanoSHIELD-AU's most significant practical benefits is enabling a dramatic reduction in precious metal thickness while maintaining or improving performance. The technology allows 35% to 75% reduction in gold thickness depending on application requirements.
Real-world implementations demonstrate these savings. One major customer successfully reduced gold thickness from 50 micro-inches to 10 micro-inches on their components. The additional cost of applying NanoSHIELD-AU proved minor compared to the substantial precious metal savings, particularly relevant given gold's market value and supply considerations.
Beyond direct cost savings, the enhanced corrosion, diffusion, and wear resistance add qualitative value through improved product performance and longevity, reducing field failures and warranty costs.
Advanced Manufacturing Processes Benefiting from SAM Technology
NanoSHIELD-AU Use Case 1: RF and Microwave Applications
The RF/microwave industry represents a primary beneficiary of NanoSHIELD-AU technology. High-frequency signal transmission depends critically on surface conductivity and consistency. Even microscopic surface irregularities or oxidation can cause signal loss, impedance mismatch, or intermodulation interference.
NanoSHIELD-AU addresses these challenges by creating stable, low-resistance contact surfaces that resist oxidation over time. The technology's ability to maintain signal integrity while reducing precious metal thickness makes it particularly valuable for:
- Coaxial connectors in telecommunications infrastructure
- Waveguide components for radar and satellite communications
- RF test equipment requiring stable, repeatable measurements
- 5G and mmWave components where every micron affects performance
- High-frequency PCB contacts and edge connectors
Several major American RF/microwave companies have adopted NanoSHIELD-AU as standard specification for their connector product lines, with one Original Equipment Manufacturer evaluating incorporating the technology across their worldwide component supply to prevent premature degradation.
NanoSHIELD-AU Use Case 2: Medical Device Manufacturing
Medical device components face unique challenges, requiring biocompatibility, sterilization resistance, and long-term reliability in biological environments. NanoSHIELD-AU enhances gold-plated medical components through:
- Sterilization Stability: The molecular layer maintains integrity through repeated autoclave, ETO, and gamma sterilization cycles
- Corrosion Resistance: Enhanced protection in corrosive biological environments extends device life
- Wear Resistance: Critical for implantable device contacts experiencing mechanical motion
- Dimensional Control: Molecular-scale thickness eliminates concerns about tight tolerance maintenance
Applications include micro-electronic medical components, implantable device contacts, surgical instrument interfaces, and diagnostic equipment connections.
NanoSHIELD-AU Use Case 3: Aerospace and Defense Systems
Aerospace applications demand components that perform reliably across extreme environmental conditions, including temperature cycling, altitude changes, vibration, and long service life without maintenance. NanoSHIELD-AU has proven successful in:
- Satellite communication systems (demonstrated on NASA weather satellite components)
- Avionics connectors requiring long-term reliability
- Missile and defense system electronics
- Space exploration equipment (Mars Rover, Star Wars Defense systems, Space Shuttles)
The technology's combination of corrosion resistance, contact stability, and wear protection addresses the multiple failure modes that aerospace components must withstand.
NanoSHIELD-AU Use Case 4: Telecommunications Infrastructure
Modern telecommunications networks rely on countless connector interfaces that must maintain signal integrity over decades of service, often in challenging environmental conditions. NanoSHIELD-AU enhances:
- Base station connectors exposed to weather and pollution
- Distributed Antenna System (DAS) components in buildings
- Fiber backhaul interfaces
- Network switching equipment
- High-density data center interconnects
The technology's ability to prevent oxidation and corrosion while maintaining stable contact resistance directly translates to reduced network downtime and maintenance costs.
NanoSHIELD-AU Use Case 5: Battery and Energy Storage Technologies
Emerging battery technologies, particularly in electric vehicles and grid storage systems, require connections that handle high currents with minimal resistance while resisting corrosion in demanding environments. NanoSHIELD-AU addresses:
- Battery terminal connections requiring low contact resistance
- Bus bar interfaces handling high current loads
- Battery management system contacts
- Charging connector interfaces experiencing repeated cycling
NanoSHIELD-AU Use Case 6: Automotive Electronics
As vehicles incorporate increasingly sophisticated electronics for safety, autonomy, and connectivity, connector reliability becomes critical. NanoSHIELD-AU has been successfully implemented on automotive safety-critical components, with proven performance through stringent PPAP and APQP validation processes required by major automotive manufacturers.
NanoSHIELD-AU Use Case 7: Miniaturized Electronics and Wearables
The trend toward smaller, more integrated electronics creates mounting challenges for traditional plating. Components measured in millimeters or smaller require surface treatments that don't compromise dimensional tolerances. NanoSHIELD-AU's molecular-scale thickness makes it ideal for:
- Microelectromechanical systems (MEMS)
- Wearable device contacts
- Hearing aid components
- Miniature sensor interfaces
- High-density PCB interconnects
Industry Adoption and Future Outlook
Despite its advantages, NanoSHIELD-AU and SAM technologies more broadly face the challenge that few military or governmental specifications currently exist for these processes. However, as customer experience grows and performance data accumulates, industry acceptance continues to accelerate.
Major OEMs worldwide have recognized the value proposition, with some developing dedicated specifications for reduced gold thickness enabled by NanoSHIELD-AU. The technology has proven particularly successful in applications where:
- Precious metal cost represents a significant component cost
- Dimensional tolerances leave little room for traditional plating thickness
- Performance requirements exceed what standard finishes deliver
- Long-term reliability in harsh environments is critical
- High mating cycle count demands exceptional wear resistance
As manufacturing continues evolving toward smaller, faster, more reliable, and more cost-effective solutions, SAM technologies like NanoSHIELD-AU will play an increasingly central role in enabling next-generation products across multiple industries.
Let’s Explore How NanoSHIELD-AU Can Benefit Your Application
For engineers and manufacturers facing the challenges of increasingly demanding applications, tighter tolerances, and cost pressures, NanoSHIELD-AU offers a proven path to meeting multiple objectives simultaneously. As industries continue pushing performance boundaries, SAMs technologies will transition from innovative specialty processes to standard specifications for components where excellence is non-negotiable. For even more about SAMs, download our premium guide.
To learn more about how NanoSHIELD-AU can enhance your component performance while reducing costs, contact Electro-Spec's engineering team for technical consultation and application evaluation.
